LBC-317

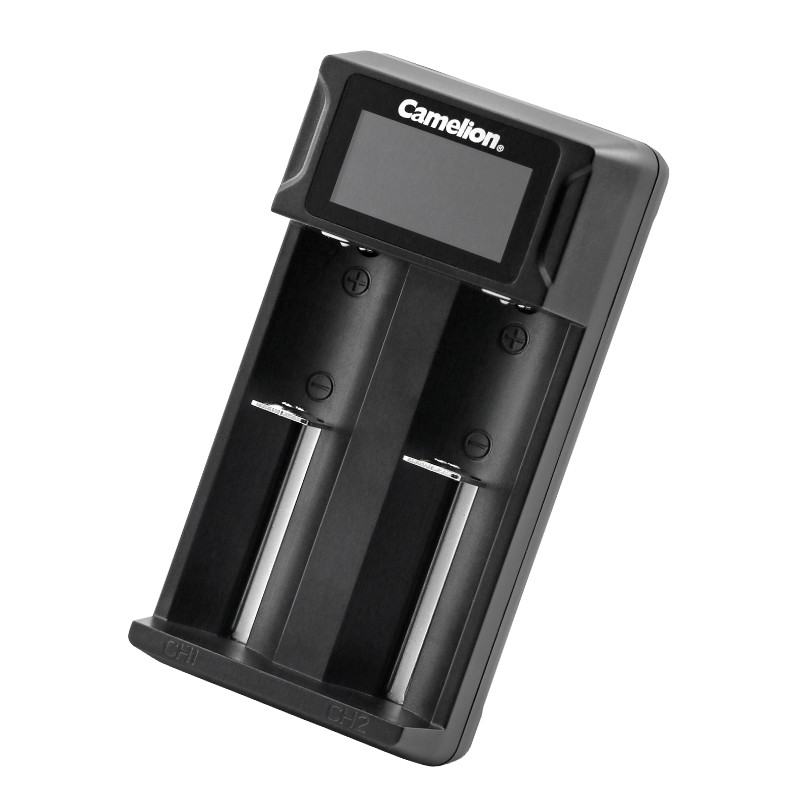

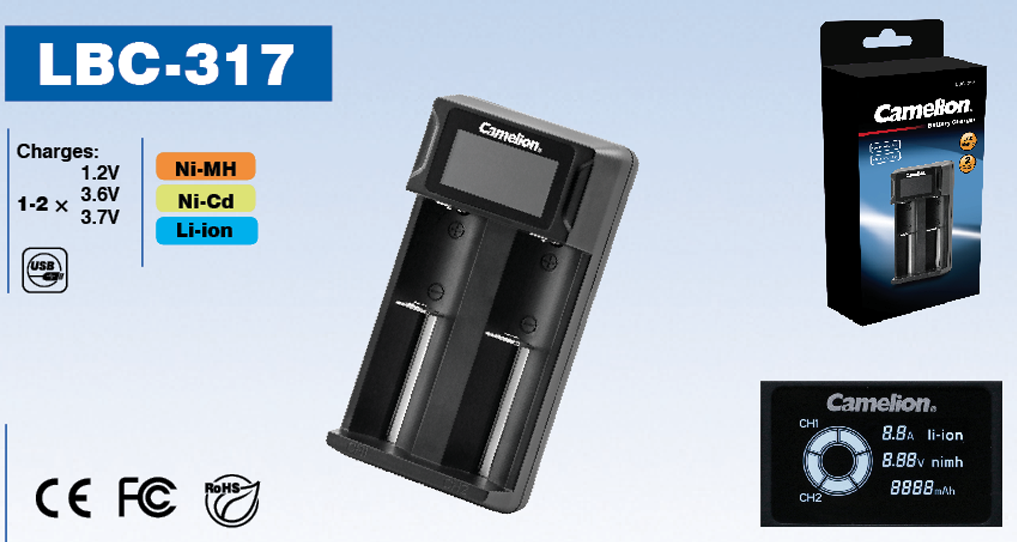

This Camelion universal battery charger is a battery charger that’s capable of charging 1.2V size AAAA, AAA, AA, SC, C, D NiMh or NiCd

rechargeable batteries, also this charger can charge 3.6V or 3.7V cylindrical Li-ion batteries of size (10400 to 32650).






 ● Charges size NiMh or NiCd rechargeable batteries

 ● Charges 3.6V & 3.7V cylindrical Li-ion batteries size 10400 to 32650

 ● Integrated MCU controlled independent charging channels and identify battery types and
selection of appropriate charging modes automatically.

 ● LCD display, showing charge progress, amount of capacity charged, and charging current.

 ● Smart detection, automatically select charging current.

 ● Capable of activating 0 volt batteries.

 ● Over charging, short circuit, reverse polarity and over charging time protections.

 ●  Attached USB on the product.



    Input: 5V 2A

    Charging Voltage: 1.48V, 4.2V

    Charging Current :1000mA /500mA (Automatic selec by

    length of batteries

    Cut-off current (at CV mode) : < 100mA

    Standby current: less than 50mA

    Weight: 102±5g
