BC-0807F

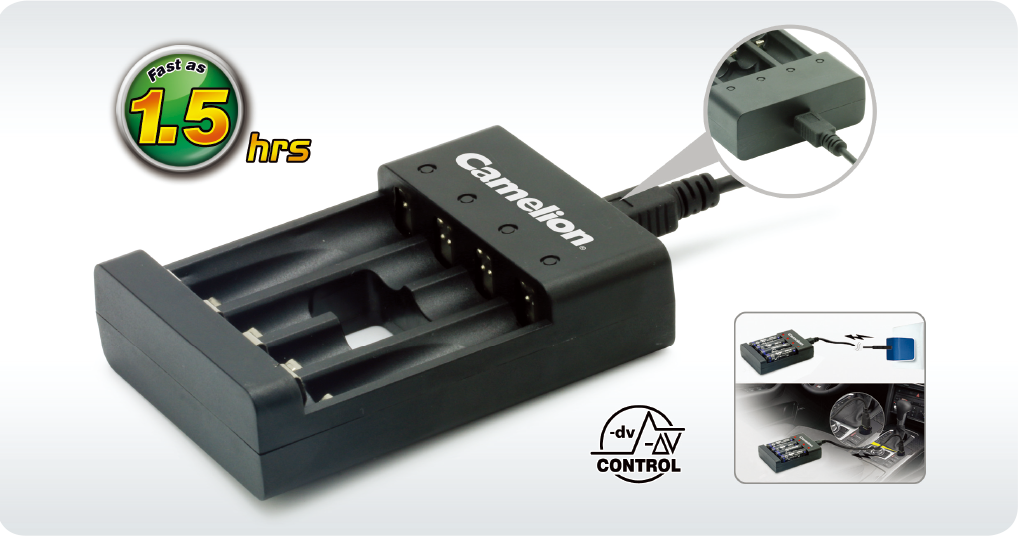

    BC-0807F USB Battery Charger can independently charge 1 to 4 pcs of rechargeable batteries. With the LED Charging Indicators, the charger will provide different signals so that you will notice when the batteries are fully charged.






 4 Independent Charging Channels

 ● Easy to Monitor LED Charge Indicators

 Red  Charging
 Flashing  Defective or non-rechargeable batteries / short circuit
 Green  Fully charged / trickle

    ● 6 Level Charge Protections:

      - V cut off
      Timer Control Protection
      Reverse Polarity Protection
      Over Current Protection
      Over Temperature Protection
      Defective and Non-rechargeable
      battery detection


Battery Type Charging Time(Appr.)
  1-2 Cells 3-4 Cells
Ni-MH AA 2700mAh 2 h 4 h
Ni-MH AA 2000mAh 1.5 h 3 h
Ni-MH AAA 1100mAh 1.5 h 3 h
Ni-MH AAA 800mAh 70 min 2.5 h
Ni-Cd AA 1000mAh 45 min 2.5 h
Ni-Cd AAA 300mAh 30 min 1 h




 *The charging time varies according to different batteries. For a more complete listing please visit http://www.camelionbattery.com/en/about.aspx?TypeId=10932







    Input: 5V, 2A
    Output: AA:  1600mA (1-2 pcs)
                          800mA (3-4 pcs)
                AAA: 800mA (1-2 pcs)
                         400mA (3-4 pcs)
